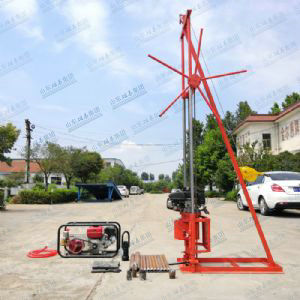

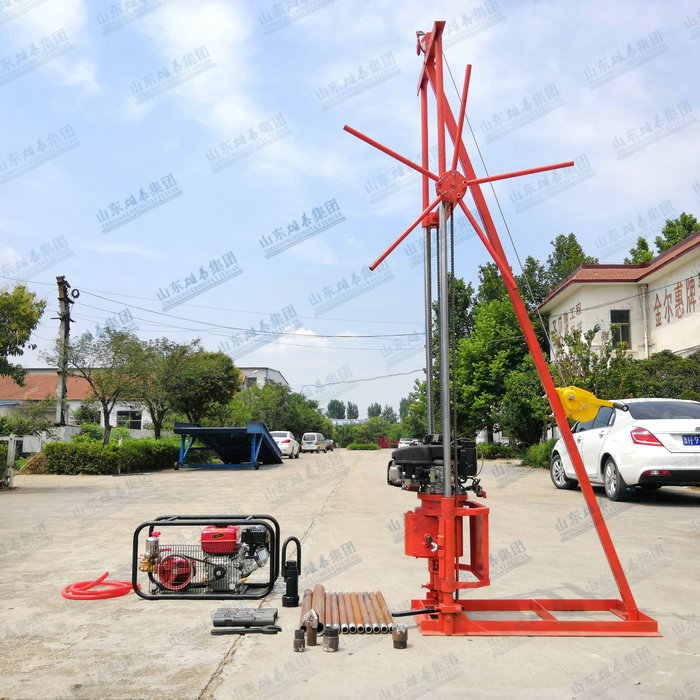

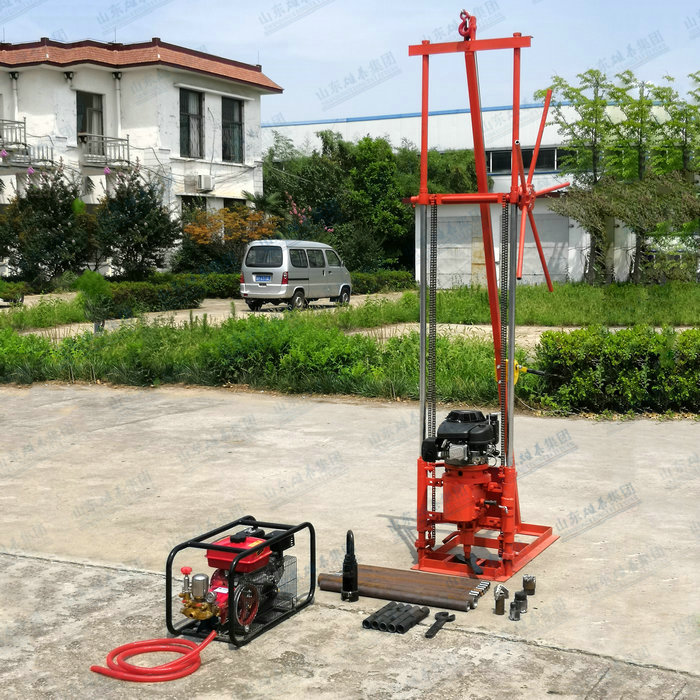

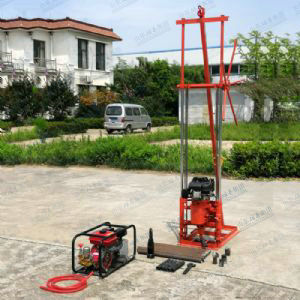

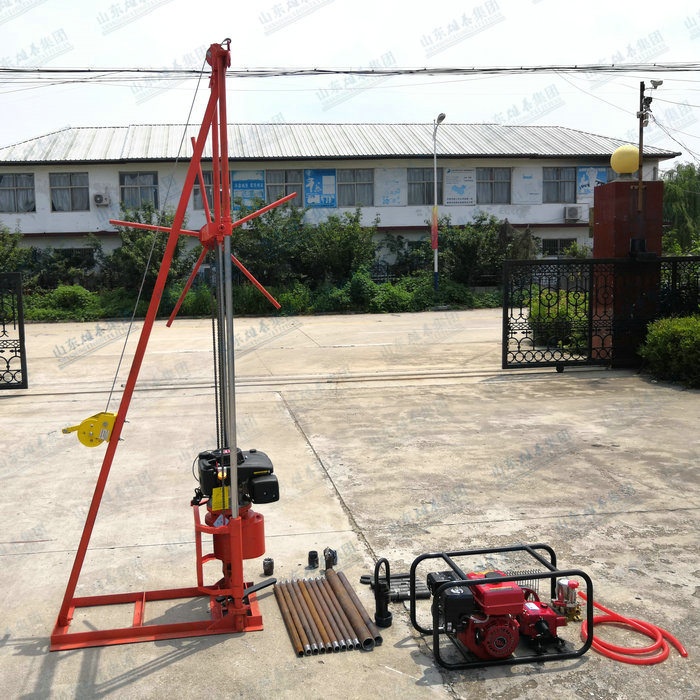

    Portable rig BZ-30S

    The company has professional and technical personnel, R&D engineers and after-sales service personnel to form an experienced team.

    Soil sampling rig

    Portable exploration rig

    Hydraulic core drill

    Reverse/positive circulation well drilling rig

    The engineering drilling machine

    Portable rig BZ-30S

    Mobile Station
    查看手機站
    一、BZ-30S汽油輕便鉆機簡介BZ-30S型汽油輕便鉆機是我公司經過長時間研究的一款扭矩大更輕便多用途微型工程鉆機成熟產品。它適用于上山勘查,工業和民用建筑、橋梁、鐵路、公路等行業的地質勘察、打物探

    信息詳情



    Introduction to bZ-30S gasoline portable drilling rig

    Bz-30s gasoline portable drilling machine is a mature product of multi-purpose micro-engineering drilling machine with large torque which has been studied by our company for a long time. It is suitable for mountain exploration, industrial and civil construction, bridge, railway, highway and other industries geological exploration, geophysical exploration hole, grouting hole, blasting, inspection hole and so on.

    Ii. Characteristics of drilling rig:

    The main part of the machine is made of aluminum alloy, which greatly reduces the weight. The overall structure is compact, small in size and light in weight.

    Iii. Parameters of bZ-30S gasoline portable sampling rig

    Bz-30s portable drilling machine adopts the displacement of 224CC gasoline engine with large horsepower and sufficient power. The drilling range is from 45mm-108mm, which can be manually pressurized for fast progress. The overall size is small to meet your actual needs.

    Bz-30s portable sampling rig
    The hole diameter(mm)45-108
    Drill hole depth(m)30
    Drill pipe diameter(mm)32
    Gasoline enginedisplacement(cc)224
    horsepower(HP)6(4.5KW)
    Rig weight(KG)100
    四、The bZ-30S gasoline engine light sampling rig is equipped in a complete set
    The name of themodelunitThe number of
    Gasoline engine sampling rigBZ-30STaiwan1
    Drill pipeΦ32*750The root20
    Lock took overφ40pay20
    headΦ45公/38母a2
    Core tube0.75米/根φ45The root1
    Alloy bitΦ46a1
    headΦ60公/38母a1
    Core tube0.75米/根φ60The root1
    Alloy bitΦ60a1
    Sweep soil drillΦ73a1
    Manual winding a1
    Steel wire rope Set of1
    The pulley a1
    Pad fork the1
    Pull the fork the1
    Steering wheel Set of1

    (If high pressure pump and water pipe are needed, please explain separately)


    Shandong XIONGTAI Machinery Group Co., Ltd


    Consultation hotline:400-0537-369


    Portable rig BZ-30S
    Portable rig BZ-30S 2019-5-28 This article is read 3397 second
